HL7 Draft Standard for Trial Use
HL7 CCPM, R1
HL7 Version 3 Standard: Common Product Model CMETs, DSTU Release 11
June 2011

Content Last Edited: 2011-06-14T14:26:17


Product kinds, as they are specified (as opposed to particular product instances).

Go To Top

 Storyboards (Sorted by Title)
 Storyboards (Sorted by Display Order)

pointer Immunization Related Storyboards (POCP_ST050001UV01
pointer Medication Related Storyboards (POCP_ST020001UV01
pointer SPL Related Storyboards (POCP_ST040001UV01
Reference

For details on the interpretation of this section, see the storyboard discussion in the Version 3 Guide.

Purpose

The following storyboards reflect the use of products in the Immunization arena

Diagram
Activity Diagram
Narrative Example

Jeremy arrived at His HMO with a card listing his immunization history. He had received 3 DTaP, 3 polio and 3 HIB/Hep B. The dates given were recorded on the card. The card came from the local Public Health agency. The nurse recorded this information in the EMR. She also gave him 3 immunizations:

PCV7 (lot # 1234rj) this is pneumococcal vaccine, dose size was 0.5 ml, site given R vastus lateralis, prescribed by Dr Who MMR II (lot # 432emd) this is vaccine against measles, mumps and rubella, dose size was 0.5 ml, site given L vastus lateralis, prescribed by Dr Who Pentacel (lot # 78u, lot # y432) this is vaccine against DTAP, polio, HIB, dose size was 0.5 ml, site given R vastus lateralis, prescribed by Dr Who

He is currently eligible for vaccine from the Vaccines for Children program (VFC)

Purpose

The following storyboards reflect the use of products in the Medication arena

Diagram

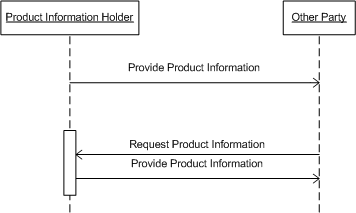

Activity Diagram
Narrative Example

Eve Everywoman is an 87-year-old woman with multiple medical problems. She lives alone and is finding it difficult to manage her health care properly. Her daughter has offered to care for her in her home and will help manage her medications until such time as Eve is ready for a long term health care facility or managed care.

To prepare for the move to her daughter's house, Eve has decided to obtain as much educational materials on her medications as possible. She visits her pharmacist, Sue Script at Good Neighbor Pharmacy and requests documentation on all her medications. Sue is pleased to oblige and requests a medication profile for Eve from the ePrescribing system (PORX_IN060290UV) (PORX_IN060300UV). From the list of current medications, which include Verapamil and Aprinox. Sue Script then issues a request to a drug knowledge base applicaton that provides short-form educational materials for these medications (POME_IN010010UV) (POME_IN010020UV), prints of the response information, explains their contents to Eve asks her to give them to her daugher.

Purpose

The following storyboards reflect the use of products in the SPL arena

Diagram
Activity Diagram

Go To Top

 Refined Message Information Models (Sorted by Title)
 Refined Message Information Models (Sorted by Display Order)

pointer R_ProductAdministrable (POCP_RM010500UV01
pointer E_ProductMaterialKind (POCP_RM010400UV01

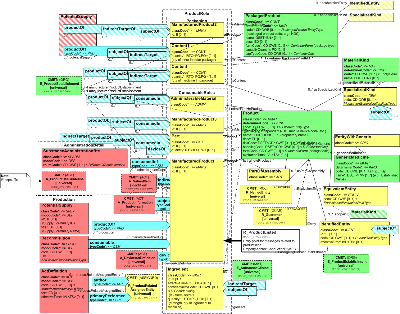

pointer E_ProductKind (POCP_RM010200UV01
pointer R_ProductUseExact (POCP_RM010600UV01
pointer R_ProductListed (POCP_RM010100UV01
pointer R_SpecializedKind (POCP_RM010300UV01
Reference

For details on the interpretation of this section, see the description of RMIMs in the Version 3 Guide.

Diagram
Parent:  ProductKind (POCP_DM010000UV)
Description

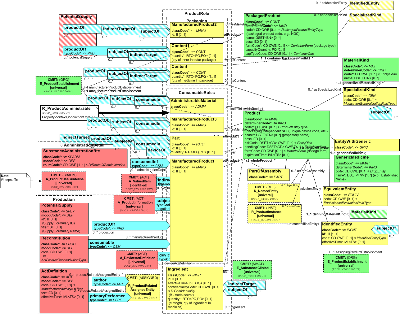

A product kind in the role of an administrable product, this is going through a role different from manufactured product, the AdministrableProduct role.

Contained Hierarchical Message Descriptions
R_ProductAdministrable POCP_HD010500UV01
Diagram
Parent:  ProductKind (POCP_DM010000UV)
Description

A simple entity which references a product kind, specifically or in general as a class.

Contained Hierarchical Message Descriptions
E_ProductMaterialKind POCP_HD010400UV01
Diagram
Parent:  ProductKind (POCP_DM010000UV)
Description

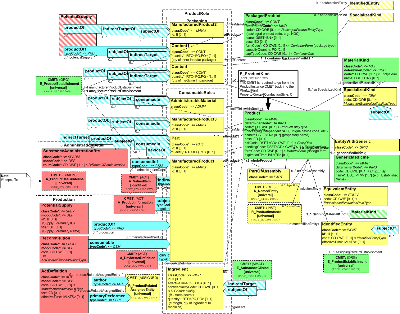

Product kind as an entity, is referenced as a scoper or player of other roles.

Contained Hierarchical Message Descriptions
E_ProductKind POCP_HD010200UV01
Diagram
Parent:  ProductKind (POCP_DM010000UV)
Description

Kind of product whereby one of the many specific roles is referenced which the product may play, as an usable product, or packaged prouct, or as a scoper of a specific ingredient (e.g., for ingredient-based dosing.)

Contained Hierarchical Message Descriptions
R_ProductUseExact POCP_HD010600UV01
Diagram
Parent:  ProductKind (POCP_DM010000UV)
Description

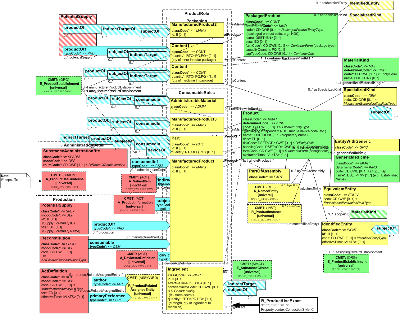

Product kind in the role of a manufactured product. This is how a product would be listed or labeled.

Contained Hierarchical Message Descriptions
R_ProductListed POCP_HD010100UV01
Diagram
Parent:  ProductKind (POCP_DM010000UV)
Description

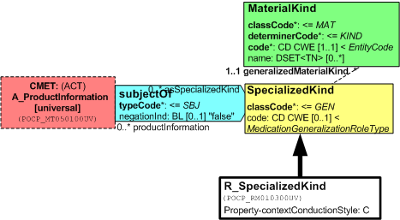

A simple structure to specify a generalization or class of a product.

Contained Hierarchical Message Descriptions
R_SpecializedKind POCP_HD010300UV01

Go To Top

 Hierarchical Message Descriptions (Sorted by Title)
 Hierarchical Message Descriptions (Sorted by Display Order)

pointer R_ProductAdministrable (POCP_HD010500UV01
pointer E_ProductMaterialKind (POCP_HD010400UV01
pointer E_ProductKind (POCP_HD010200UV01
pointer R_ProductUseExact (POCP_HD010600UV01
pointer R_ProductListed (POCP_HD010100UV01
pointer R_SpecializedKind (POCP_HD010300UV01
Reference

For details on the interpretation of this section, see the description of HMDs in the Version 3 Guide.

Description

A product kind in the role of an administrable product, this is going through a role different from manufactured product, the AdministrableProduct role.

Common Message Element Types Used
A_ValuedItemIdentified COCT_MT440001UV09
R_NamedEntityUniveral POCP_MT000100UV
R_ProductInstanceUniversal POCP_MT020100UV01
R_ProductRelatedAssignedEntityUniversal POCP_MT030100UV01
E_ProductEstablishmentUniversal POCP_MT030200UV01
E_ProductEstablishmentUniversal POCP_MT030200UV01
A_ProductInformationUniversal POCP_MT050100UV01
A_ProductUseGuidelineUniversal POCP_MT060000UV01
A_DeviceActDefinitionUniversal POCP_MT070000UV01
E_SubstanceClinicalUniversal POCP_MT081100UV01
Base Hierarchical Message Description Goto RMIM Table View Excel View
Message Type List
R_ProductAdministrable POCP_MT010500UV01
Description

A simple entity which references a product kind, specifically or in general as a class.

Base Hierarchical Message Description Goto RMIM Table View Excel View
Message Type List
E_ProductMaterialKind POCP_MT010400UV01
Description

Product kind as an entity, is referenced as a scoper or player of other roles.

Common Message Element Types Used
A_ValuedItemIdentified COCT_MT440001UV09
R_NamedEntityUniveral POCP_MT000100UV
R_ProductInstanceUniversal POCP_MT020100UV01
R_ProductRelatedAssignedEntityUniversal POCP_MT030100UV01
E_ProductEstablishmentUniversal POCP_MT030200UV01
E_ProductEstablishmentUniversal POCP_MT030200UV01
A_ProductInformationUniversal POCP_MT050100UV01
A_ProductUseGuidelineUniversal POCP_MT060000UV01
A_DeviceActDefinitionUniversal POCP_MT070000UV01
E_SubstanceClinicalUniversal POCP_MT081100UV01
Base Hierarchical Message Description Goto RMIM Table View Excel View
Message Type List
E_ProductKind POCP_MT010200UV01
Description

Kind of product whereby one of the many specific roles is referenced which the product may play, as an usable product, or packaged prouct, or as a scoper of a specific ingredient (e.g., for ingredient-based dosing.)

Common Message Element Types Used
A_ValuedItemIdentified COCT_MT440001UV09
R_NamedEntityUniveral POCP_MT000100UV
R_ProductInstanceUniversal POCP_MT020100UV01
R_ProductRelatedAssignedEntityUniversal POCP_MT030100UV01
E_ProductEstablishmentUniversal POCP_MT030200UV01
E_ProductEstablishmentUniversal POCP_MT030200UV01
A_ProductInformationUniversal POCP_MT050100UV01
A_ProductUseGuidelineUniversal POCP_MT060000UV01
A_DeviceActDefinitionUniversal POCP_MT070000UV01
E_SubstanceClinicalUniversal POCP_MT081100UV01
Base Hierarchical Message Description Goto RMIM Table View Excel View
Message Type List
R_ProductUseExact POCP_MT010600UV01
Description

Product kind in the role of a manufactured product. This is how a product would be listed or labeled.

Common Message Element Types Used
A_ValuedItemIdentified COCT_MT440001UV09
R_GuarantorUniversal COCT_MT670000UV04
R_NamedEntityUniveral POCP_MT000100UV
R_ProductRelatedAssignedEntityUniversal POCP_MT030100UV01
E_ProductEstablishmentUniversal POCP_MT030200UV01
E_ProductEstablishmentUniversal POCP_MT030200UV01
A_ProductInformationUniversal POCP_MT050100UV01
A_ProductUseGuidelineUniversal POCP_MT060000UV01
A_DeviceActDefinitionUniversal POCP_MT070000UV01
E_SubstanceClinicalUniversal POCP_MT081100UV01
Base Hierarchical Message Description Goto RMIM Table View Excel View
Message Type List
R_ProductListed POCP_MT010100UV01
Description

A simple structure to specify a generalization or class of a product.

Common Message Element Types Used
A_ProductInformationUniversal POCP_MT050100UV01
Base Hierarchical Message Description Goto RMIM Table View Excel View
Message Type List
R_SpecializedKind POCP_MT010300UV01
