appdProductInformation Topic
HL7 Draft Standard for Trial Use
HL7 CCPM, R1
HL7 Version 3 Standard: Common Product Model CMETs, DSTU Release 11
June 2011

Content Last Edited: 2011-06-14T14:26:17


Generic information about the kind of product, such as product documents (data sheets), specific product characteristics, approvals (marketing authorizations), marketing activity, policies and product use monitoring programs.

Go To Top

 Refined Message Information Models (Sorted by Title)
 Refined Message Information Models (Sorted by Display Order)

pointer A_ProductInformation (POCP_RM050100UV01
pointer A_ProductCharacteristics (POCP_RM050200UV01
pointer R_TerritorialAuthority (POCP_RM050300UV01
pointer E_Territory (POCP_RM050400UV01
Reference

For details on the interpretation of this section, see the description of RMIMs in the Version 3 Guide.

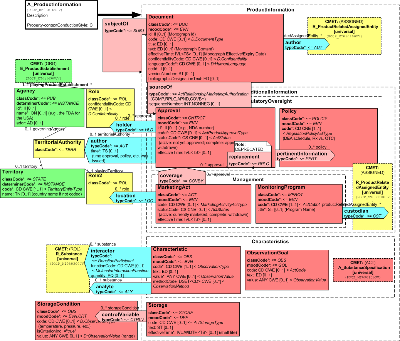

Diagram
Parent:  ProductKind (POCP_DM010000UV)
Description

A variety of additional product information (characteristics), and a reference to a product document which serves to indicate a "version" of a product description. There are also representations of product activities such as regulatory actions (approvals), marketing activity, and policies and programs under which the distribution and use of the products may be controlled.

Contained Hierarchical Message Descriptions
A_ProductInformation POCP_HD050100UV01

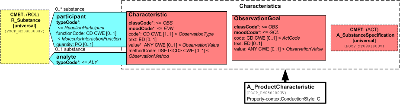

Diagram
Parent:  ProductKind (POCP_DM010000UV)
Description

Characteristics, observation goals or substance specification reference.

Contained Hierarchical Message Descriptions
A_ProductCharacteristic POCP_HD050200UV01

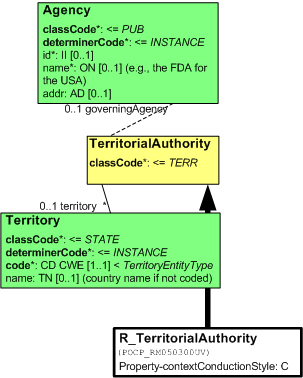

Diagram
Parent:  ProductKind (POCP_DM010000UV)
Description

A role that provides a linkage to the agency that authors the approval, and to the territory over which that agency has jurisdiction. The purpose of this role is to allow either the Country code alone or the Agency or both to be specified as the author of approvals.

Contained Hierarchical Message Descriptions
R_TerritorialAuthority POCP_HD050300UV01
Diagram
Parent:  ProductKind (POCP_DM010000UV)
Description

A politically organized body of people bonded by territory, culture, or ethnicity, having sovereignty (to a certain extend) granted by other states (enclosing or neighboring states). This includes countries (nations), provinces (e.g., one of the United States of America or a French department), counties or municipalities. Refine using, e.g., ISO country codes, FIPS-PUB state codes, etc.

Contained Hierarchical Message Descriptions
E_Territory POCP_HD050400UV01

Go To Top

 Hierarchical Message Descriptions (Sorted by Title)
 Hierarchical Message Descriptions (Sorted by Display Order)

pointer A_ProductInformation (POCP_HD050100UV01
pointer A_ProductCharacteristics (POCP_HD050200UV01
pointer R_TerritorialAuthority (POCP_HD050300UV01
pointer E_Territory (POCP_HD050400UV01
Reference

For details on the interpretation of this section, see the description of HMDs in the Version 3 Guide.

Description

A variety of additional product information (characteristics), and a reference to a product document which serves to indicate a "version" of a product description. There are also representations of product activities such as regulatory actions (approvals), marketing activity, and policies and programs under which the distribution and use of the products may be controlled.

Common Message Element Types Used
R_ProductRelatedAssignedEntityUniversal POCP_MT030100UV01
R_ProductRelatedAssignedEntityUniversal POCP_MT030100UV01
E_ProductEstablishmentUniversal POCP_MT030200UV01
R_SubstanceUniversal POCP_MT080300UV01
A_SubstanceSpecificationUniversal POCP_MT090100UV01
Base Hierarchical Message Description Goto RMIM Table View Excel View
Message Type List
A_ProductInformation POCP_MT050100UV01
Description

Characteristics, observation goals or substance specification reference.

Common Message Element Types Used
R_SubstanceUniversal POCP_MT080300UV01
A_SubstanceSpecificationUniversal POCP_MT090100UV01
Base Hierarchical Message Description Goto RMIM Table View Excel View
Message Type List
A_ProductCharacteristic POCP_MT050200UV01
Description

A role that provides a linkage to the agency that authors the approval, and to the territory over which that agency has jurisdiction. The purpose of this role is to allow either the Country code alone or the Agency or both to be specified as the author of approvals.

Base Hierarchical Message Description Goto RMIM Table View Excel View
Message Type List
R_TerritorialAuthority POCP_MT050300UV01
Description

A politically organized body of people bonded by territory, culture, or ethnicity, having sovereignty (to a certain extend) granted by other states (enclosing or neighboring states). This includes countries (nations), provinces (e.g., one of the United States of America or a French department), counties or municipalities. Refine using, e.g., ISO country codes, FIPS-PUB state codes, etc.

Base Hierarchical Message Description Goto RMIM Table View Excel View
Message Type List
E_Territory POCP_MT050400UV01

Return to top of page
