appd10 SubstanceSpecification Topic
HL7 Draft Standard for Trial Use
HL7 CCPM, R1
HL7 Version 3 Standard: Orders; Substances CMETs, DSTU Release 11
June 2011

Content Last Edited: 2011-06-14T14:26:17


Return to Domain Table of Contents

10.1  Introduction
10.2  Refined Message Information Models
10.3  Hierarchical Message Descriptions
 10.1Introduction

Specified substance is a means to create a short-hand for a detailed substance specification and referencing such detailed substance specification by a SpecifiedSubstance id.

10.2 Refined Message Information Models

Go To Top

► Refined Message Information Models (Sorted by Title)
▼ Refined Message Information Models (Sorted by Display Order)

pointer A_SubstanceSpecification (POCP_RM090100UV01)
Reference

For details on the interpretation of this section, see the description of RMIMs in the Version 3 Guide.

appd10.2.1 A_SubstanceSpecification (POCP_RM090100UV01)

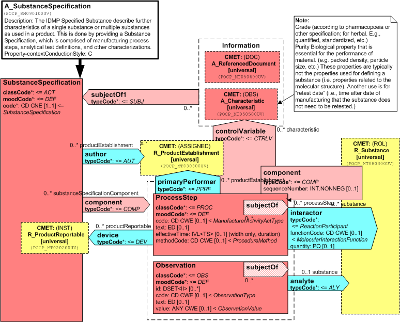

Diagram
Parent:  ProductKind (POCP_DM010000UV)
Description

The IDMP Specified Substance describe further characteristics of a single substance or multiple substances as used in a product. This is done by providing a Substance Specification, which is comprised of manufacturing process steps, analytical test definitions, and other characterizations.

Contained Hierarchical Message Descriptions
A_SubstanceSpecification POCP_HD090100UV01
10.3 Hierarchical Message Descriptions

Go To Top

► Hierarchical Message Descriptions (Sorted by Title)
▼ Hierarchical Message Descriptions (Sorted by Display Order)

pointer A_SubstanceSpecification (POCP_HD090100UV01)
Reference

For details on the interpretation of this section, see the description of HMDs in the Version 3 Guide.

appd10.3.1 A_SubstanceSpecification (POCP_HD090100UV01)
Description

The IDMP Specified Substance describe further characteristics of a single substance or multiple substances as used in a product. This is done by providing a Substance Specification, which is comprised of manufacturing process steps, analytical test definitions, and other characterizations.

Common Message Element Types Used
R_ProductReportableUniversal POCP_MT020200UV01
R_ProductEstablishmentUniversal POCP_MT030300UV01
A_CharacteristicUniversal POCP_MT050500UV01
A_ReferencedDocumentUniversal POCP_MT050600UV01
R_SubstanceUniversal POCP_MT080300UV01
Base Hierarchical Message Description Goto RMIM Table View Excel View
Message Type List
A_SubstanceSpecification POCP_MT090100UV01 Table View Schema View View Interactions

Return to top of page
